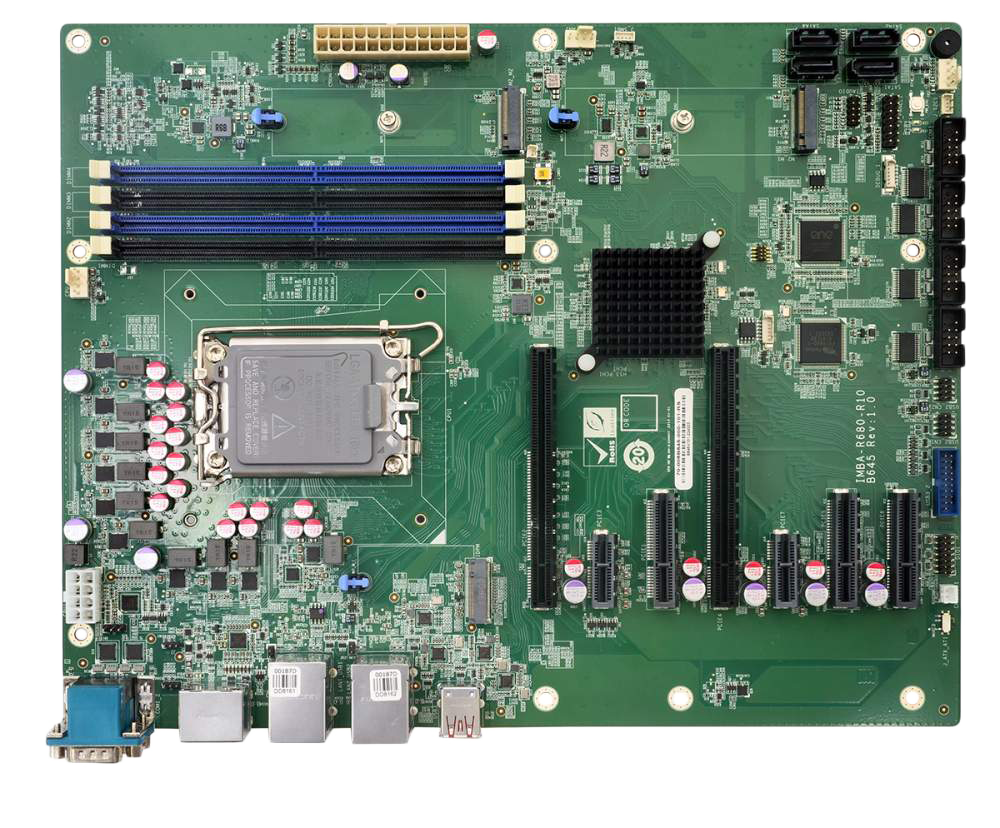

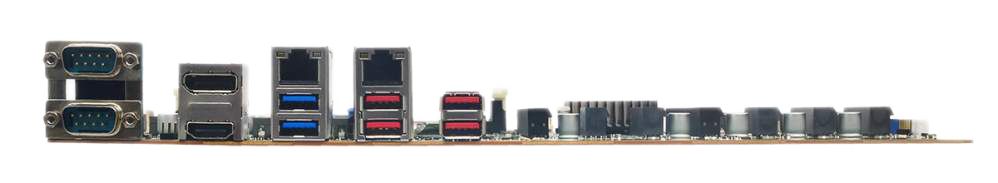

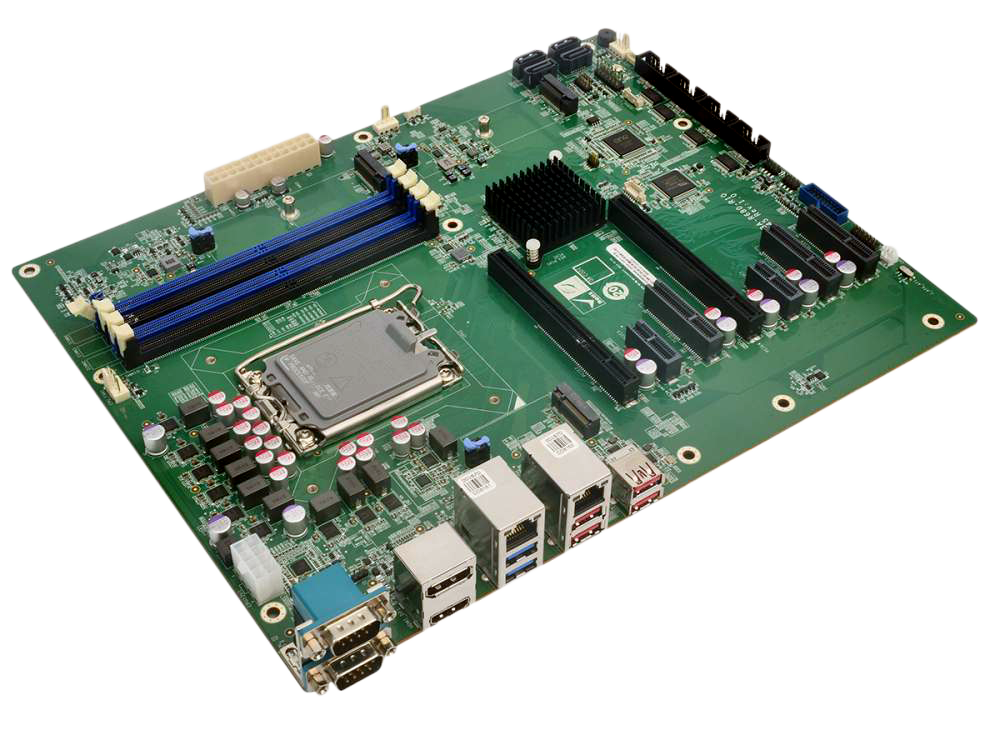

ATX 12th/13th Gen. DDR4 2.5GbE
verfügbar
- LGA1700 Intel® 12th/13th Gen Core™
- Intel® Q670/Q670E
- DDR4 DIMM bis 128GB RAM
449,00 €
SKU
:
1002399
Kategorien:
Weitere Anpassungen notwendig?
Teilen Sie Ihre Konfiguration
Eigenschaften
- LGA1700 Intel® R680E 12th/13th Gen Core™
- DDR5 DIMM bis 128GB RAM (ECC)
- Vielfältige Anschlußmöglichkeiten
Technische Daten
| Subtitle | ATX-Q670-IEBAQ6 |
|---|---|
| Produkt | ATX-Q670-IEBAQ6 |
| CPU Familie | Core™ |
| CPU Generation | 12. Gen Core i, 13. Gen Core i |
| CPU Code Name | Alder Lake |
| CPU Sockel | 1700 |
| Mainboard Chipsatz | Intel® Q670 |
| Formfaktor Board | ATX |
| RAM Bänke | 4 Slots |
| RAM Generation | DDR4 |
| RAM Maximal | 128GB |
| Modul Typ | non ECC, UDIMM |
| RAM Typ | DIMM |
| Audio Chipset | AC-KIT-888S Audio Kit |
| Audio Anschlüsse | Front Panel Audio Connector, 10-Pin Header |
| PCIe Slots | 7 PCIe |
| Kartenslot 1 Typ | PCIe |
| PCIe Slot 1 Größe | x16 |
| PCIe Slot 1 Generation | PCIe Gen. 4 |
| PCIe Slot 1 Lanes | x16 |
| PCIe Slot 1 Anbindung | CPU |
| Kartenslot 2 Typ | PCIe |
| PCIe Slot 2 Größe | x16 |
| PCIe Slot 2 Generation | PCIe Gen. 4 |
| PCIe Slot 2 Lanes | x16 |
| PCIe Slot 2 Anbindung | CPU |
| Kartenslot 3 Typ | PCIe |
| PCIe Slot 3 Größe | x4 |
| PCIe Slot 3 Generation | PCIe Gen. 4 |
| PCIe Slot 3 Lanes | x4 |
| PCIe Slot 3 Anbindung | CPU |
| Kartenslot 4 Typ | PCIe |
| PCIe Slot 4 Größe | x4 |
| PCIe Slot 4 Generation | PCIe Gen. 4 |
| PCIe Slot 4 Lanes | x4 |
| PCIe Slot 4 Anbindung | Chipsatz |
| Kartenslot 5 Typ | PCIe |
| PCIe Slot 5 Größe | x1 |
| PCIe Slot 5 Generation | PCIe Gen. 3 |
| PCIe Slot 5 Lanes | x1 |
| PCIe Slot 5 Anbindung | Chipsatz |
| Kartenslot 6 Typ | PCIe |
| PCIe Slot 6 Größe | x1 |
| PCIe Slot 6 Generation | PCIe Gen. 3 |
| PCIe Slot 6 Lanes | x1 |
| PCIe Slot 6 Anbindung | Chipsatz |
| PCIe Slot 7 Größe | x1 |
| PCIe Slot 7 Generation | PCIe Gen. 3 |
| PCIe Slot 7 Lanes | x1 |
| PCIe Slot 7 Anbindung | Chipsatz |
| M.2 Anzahl | 2 m.2 |
| M.2 Slot 1 Key | Key M |
| M.2 Slot 1 Formfaktor | 2242, 2280 |
| M.2 Slot 1 PCIe Lanes | x4 |
| M.2 Slot 1 PCIe Generation | PCIe Gen. 3 |
| M.2 Slot 2 Key | Key M |
| M.2 Slot 2 Formfaktor | 2242, 2280 |
| M.2 Slot 2 PCIe Lanes | x2 |
| M.2 Slot 2 PCIe Generation | PCIe Gen. 3 |
| Lüfteranschluss | 4-Pin |
| Lüfter-Anschluss Anzahl | 3 |
| Kühlung | Fanless |
| Display Anschlüsse | 1x HDMI, 1x DP, 1x iDP (Internal DP) |
| Display Port Version | DisplayPort 1.4 |
| COM | 2x RS232/RS422/RS485 |
| COM Ports interner Pin Header | 4x RS232 |
| Spezielle I/O | I²C (Wafer), Watchdog Timer 1~255 sec., 4-pin fan header |
| Interne USB A Buchse | USB 3.2 Gen 1 |
| Mögliche USB 2 Ports | 4 |
| USB 2.0 Ports via interner Pin Header | 4x |
| Mögliche USB 3 Ports | 8 |
| USB 3.0 (USB 3.2 Gen 1×1) | 2x |
| USB 3.0 (USB 3.2 Gen 1×1) Ports via 20-Pin Header | 2x |
| USB 3.2 (USB 3.2 Gen 2×2) Typ-C | 2x |
| USB 3.2 (USB 3.2 Gen 2×2) Key B 20 Pin Header Ports | 2x |
| Mögliche COM-Ports | 6 |
| COM Standards | RS232, RS422, RS485 |
| Front Panel IO | Power LED, HDD LED, Speaker, Power Taster, Reset Taster |
| Netzwerkschnittstellen | 2x 2,5Gbit RJ45 |
| Netzwerk-Chipsatz | Intel® I225V PCIe 2,5GbE, Intel® I226V PCIe 2,5GbE |
| RAID-Level | 0, 1, 5, 10 |
| Laufwerksanschlüsse (SATA/SAS/U2) | 6 |
| SATA Revision | SATA-3 (6Gbit/s) |
| SATA Anschlüsse | 4x |
| Schnittstelle Port 1 | SATA |
| Schnittstelle Port 2 | SATA |
| Schnittstelle Port 3 | SATA |
| Schnittstelle Port 4 | SATA |
| Schnittstelle Port 5 | M.2 NVMe |
| Schnittstelle Port 6 | M.2 NVMe |
| ATX 24Pin Anschluss | 1x |
| EPS CPU 8Pin Anschluss | 1x |
| Trusted Platform Module (TPM) | TPM chip on board, TPM 2.0 |
| Industriestandards | CE |
| Umgebungstemperatur Betrieb | 0°C ~ 60°C |
| Lagertemperatur | -30°C ~ 70°C |
| Relative Luftfeuchtigkeit Betrieb | 5% ~ 95%, non-condensing |
| Embedded | langzeitverfügbar |
| Netto Gewicht | 0.700000 |
| Breite (mm) | 244 |
| Tiefe (mm) | 305 |
